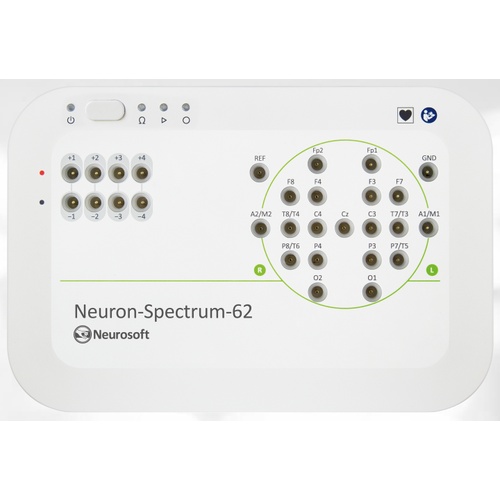

Neuron-Spectrum-62: 19-channel EEG

The Neuron-Spectrum-62 features 19 EEG channels + 4 differential channels for any physiological signal type acquisition (ECG, EOG, EMG, etc.). The Neuron-Spectrum-62 is an easy-to-use and effective tool for routine EEG and long-term video EEG monitoring in healthcare facilities, especially for children.

Neuron-Spectrum-62: 19-channel EEG

Online Live Demonstration

We offer online live demonstrations on the use of our equipment. Click here to request a demo now!

Brochure

You can find more information in the product brochure

EEG channels + differential channels for any physiological signal type acquisition

Neuron-Spectrum-62 electronic unit features 19 EEG channels and 4 polygraphic channels for ECG, EOG and other signal type acquisition. The channels can work both in AC and DC modes.

Perfect for EEG studies in children and adolescents

The provided channels of Neuron-Spectrum-62 make it an easy-to-use and effective tool for routine EEG and long-term video EEG monitoring in healthcare facilities, especially for children. The systems allows recording of long-latency and cognitive evoked potentials as well as performing BFB training.

Unmatched performance

The unrivaled technical specifications of the system bring EEG recording to a new level. High sampling rate (up to 16 kHz for a channel) ensures recording of high-frequency components without “swallowing” spikes or sharp waves and without sudden amplitude decrease. Low noise level (<1.4 µV peak-to-peak) allows using minimum EEG filtering or using no filtering at all, thus, storing the essential data for further reference.

Continuous impedance monitoring during acquisition

The color-coded impedance indication on the lead inputs and continuous impedance measurement during acquisition assist the specialist in signal quality monitoring and, if necessary, with timely adjustment of the electrode position, thus, ensuring superb recording quality. The operating mode can be switched at a push of a button on the front panel of the device whereas the LED indicator next to button will always show the current operating mode.

Advanced tools for mathematical analysis of EEG

During EEG analysis the software automatically detects spikes and sharp waves indicative of abnormal EEG pattern. The excellent trace display quality is achieved by applying the cutting-edge smoothing technologies. The user-friendly solution for quick navigation throughout the entire EEG record streamlines the visual analysis.

The advanced tools for mathematical analysis of EEG are provided as well: amplitude, spectral and bispectral analysis, correlation and coherent analysis, wavelet-analysis, periodometric analysis, independent component analysis (ICA) are always available in all software configurations.

Standard electrode cap connector

Even if you use the electrode cap of various manufactures, it can be easily connected via the standard socket of an EEG amplifier. You no longer need any adapters or other accessories, which is time- and cost-effective.
