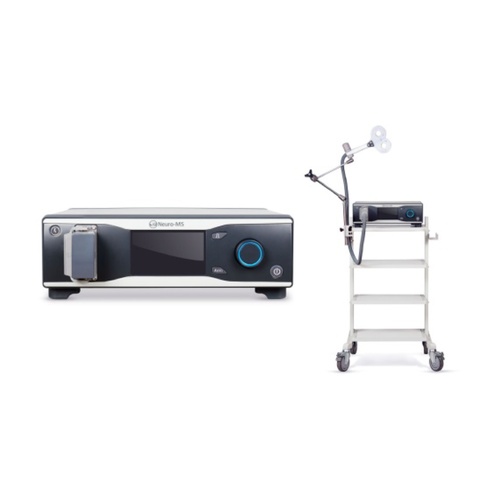

Monophasic diagnostic TMS system

The Neurosoft Neuro-MS magnetic stimulator allows for powerful monophasic TMS pulses due to the 2800 V capacitor. The TMS device has a very low electromagnetic interference during charge and discharge, allowing clean and easy to interpret EMG, EEG, or ERP recordings. Various types of TMS coils are available such as a ring coil, a figure-of-eight coil, and a double cone coil. The diagnostic TMS unit is CE certified for clinical use in the EU.

Monophasic diagnostic TMS system

Online Live Demonstration

We offer online live demonstrations on the use of our equipment. Click here to request a demo now!


You can find more information in the product brochure

High power monophasic pulse

Thanks to the 2800 V capacitor, the Neuro-MS TMS unit fires more powerful monophasic pulses. It ensures good motor response at low intensities. The peak magnetic field of Neuro-MS/D reaches 4 T, one of the highest values in the industry.

Pulse shape

The shape of the TMS pulse generated by this TMS stimulator is monophasic. Monophasic pulse shapes are better suited for diagnostic application of TMS, as the ensuing motor evoked potential signal is cleaner and easier to interpret.

Delayed charging mode

While working together with a digital EMG system a delay for the capacitor charge start is set in the single pulse mode to avoid noise influence from the power supply unit during the acquisition. The range of the delay is 0–9.9 seconds.


Connection to computer via USB port

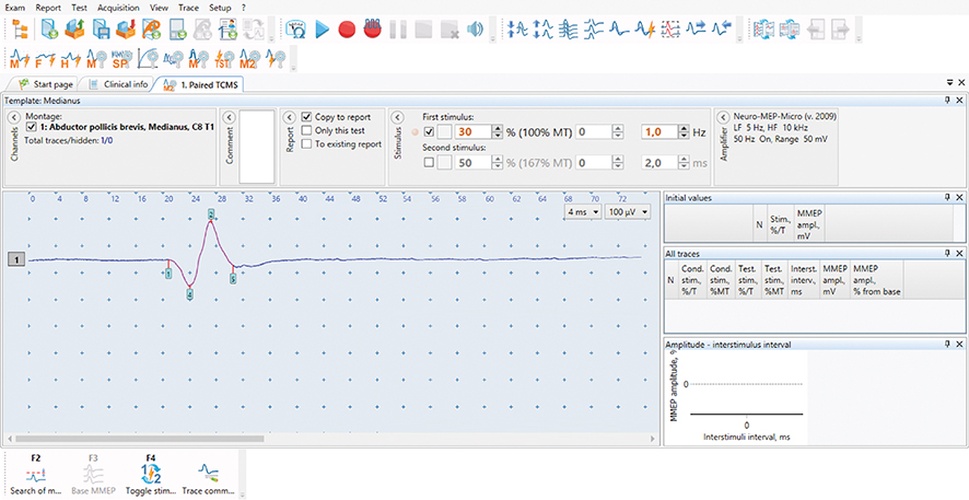

Neuro-MS/D can be used together with neurophysiological systems made by Neurosoft. Just connect the magnetic stimulator to the computer with installed EMG or EEG software via an USB port.
